Description
Repair kit for operating panel / keyboard contact dome foil in the following Bang & Olufsen models:
BeoCenter 2300
BeoCenter 2500
BeoSound Ouverture
BeoSound 2500
BeoSound 3000
BeoSound 3200
BeoSound 4000
MPAV9000 Master Panel AV9000

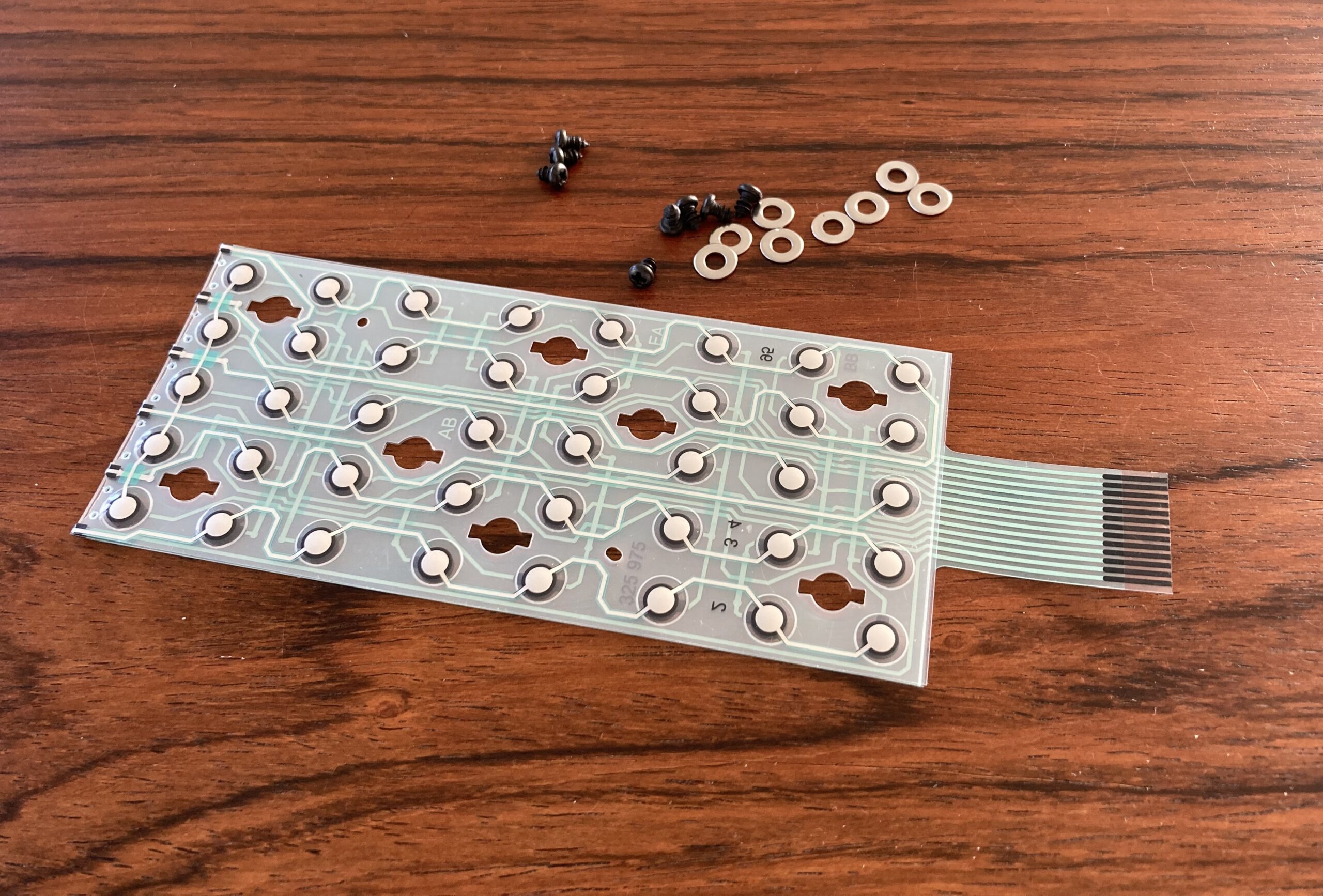

Set with new Contact Dome Foil sheet and mounting hardware.
The original part is known to develop internal breaks causing rows, columns and/or groups of buttons on the front panel to become irresponsive.
This is a direct replacement for original part# 7500270 (“Contact spring”).
Instructions for mounting in to operating panel can be downloaded using link in the order confirmation e-mail.

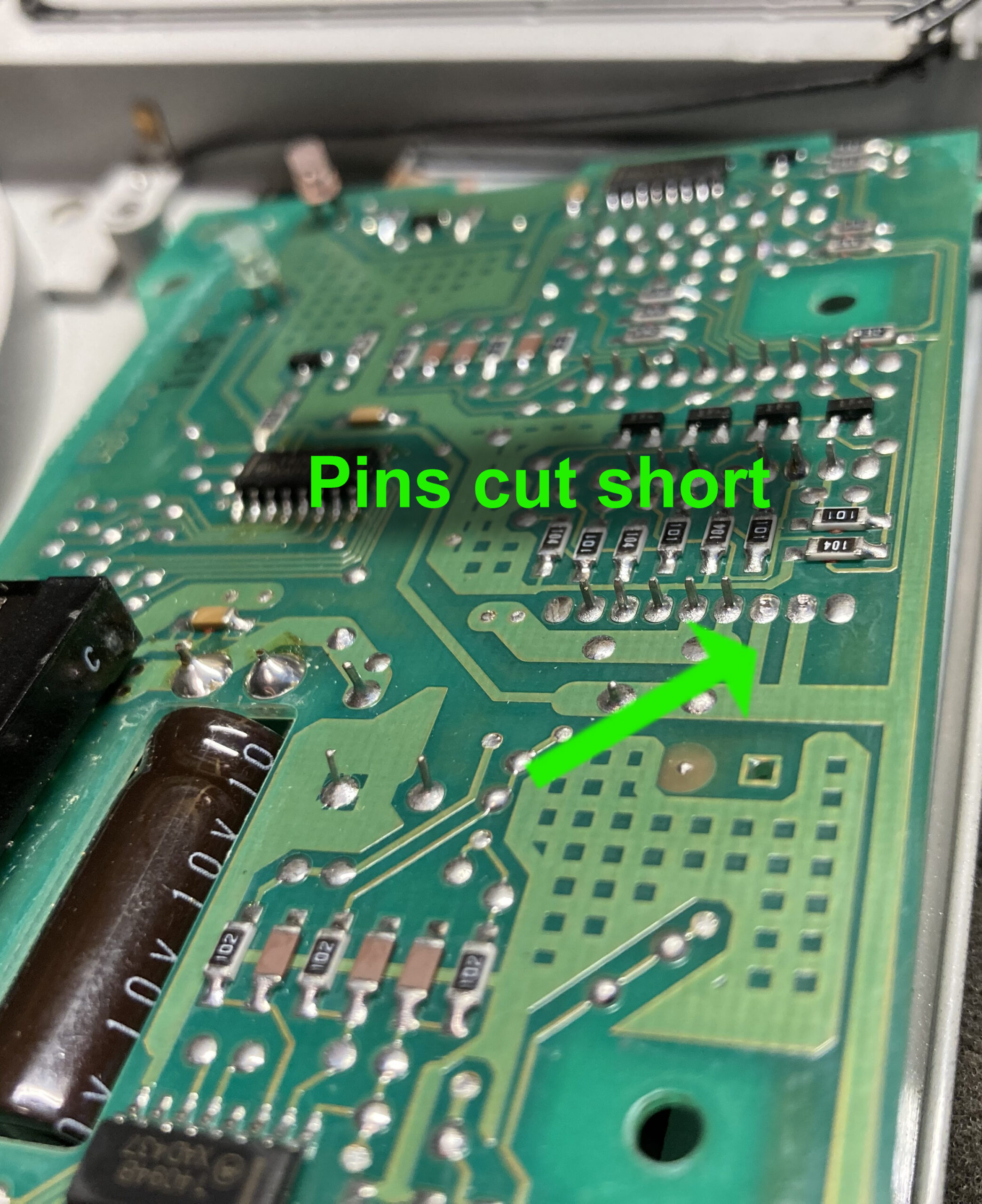

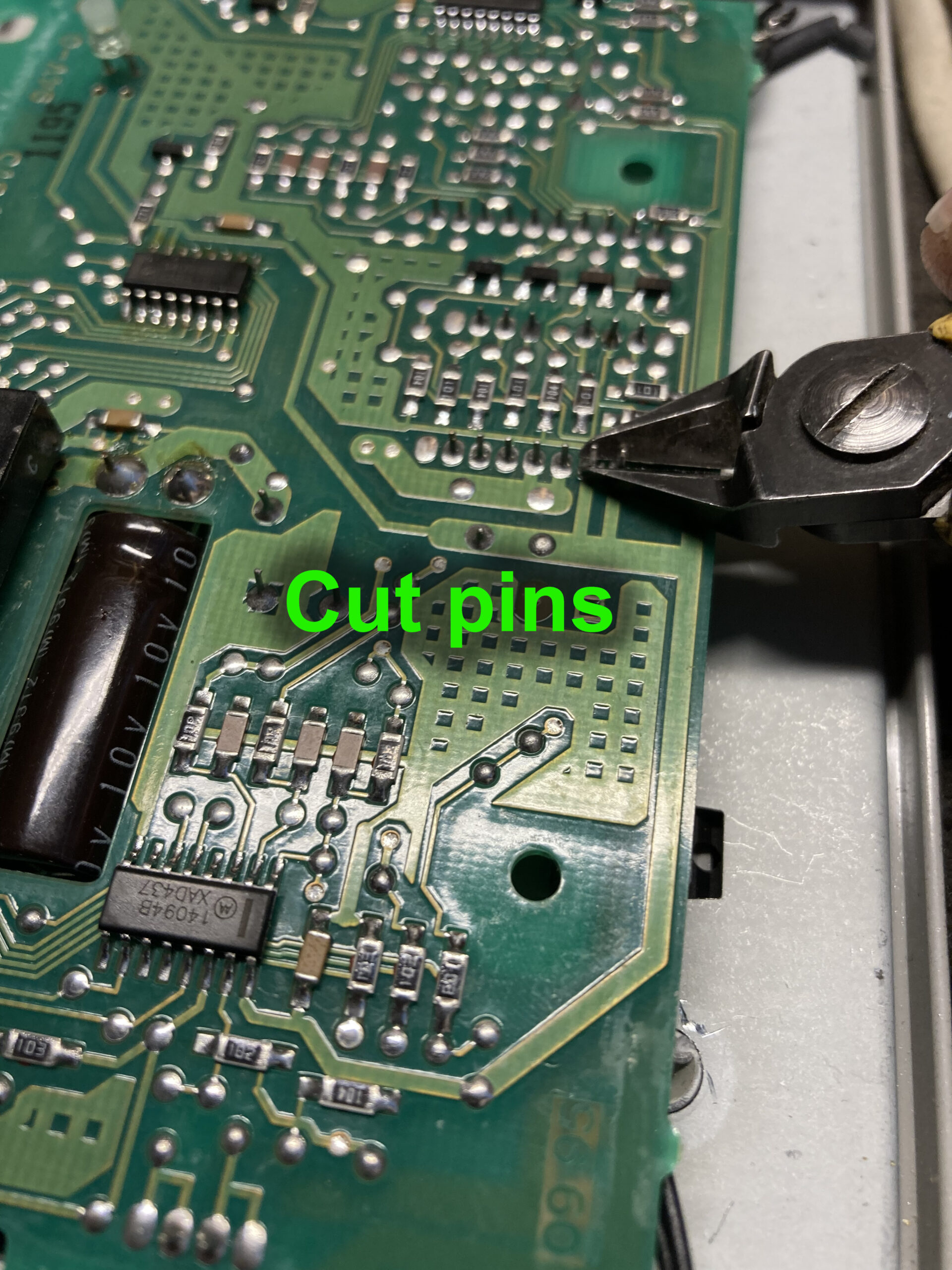

Important: Remember to cut the connector pins short on the solder side of the circuit board, so the pins will not short to the screws heads when assembled (see gallery photos).
Manufactured by Danish Sound Parts.
OP-023
